Power Cords, Thousands Of Plug/Cord CombinationsPower supply cords are our strongest product line.  Most varieties can be made in just days!  We maintain a large raw materials inventory including over 300 types of common service cordage, over 400 different terminals, and multiple colors of molding compound.

Our production facilities have also been engineered to focus on customer service.  We run a lean manufacturing operation with responsiveness as our ultimate goal.

COMMON POWER SUPPLY CORDS

Most are made with round plastic cord with a molded plug.  Cord types like SJT and SVT in gauge sizes from 18 to 12.  These cords are customized by:

bullet

Color

bullet

Length

bullet

Plug configuration

bullet

Length of free end jacket removal

bullet

Conductor colors

bullet

Special terminals

bullet

Stripping or tinning the conductors

bullet

Folding and tying each cord





THE FLAT CORD

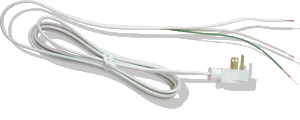

White SPT-2 Cord With Right Angle PlugFlat cordage, type SPT, is often used to reduce cost.  The conductors lay parallel, and the outer jacket doubles as the conductor insulation.

Cord Specialties stocks black, white, brown, and gray SPT cordage.  We can mold either a straight or right angle (shown here) plug on flat cordage.



'RUBBER' CORDS

Jacketed with CPE or EPDM, this cordage offers a more durable look and additional cold weather flexibility.  Common types include SJOW, SO(O)W, and HSJO.



HEAVY DUTY CORDS

Cord sets using 600V cordage have a thicker outer jacket and thicker conductor insulation.  Common types include SOW, and ST.

We mold both 15 and 20 amp straight blade plugs.



DETACHABLE POWER SUPPLY CORDS

Detachable Power Supply Cord EndsWe stock a 90 inch version of a cord with the pictured ends (NEMA 5-15P and IEC60320 C13).  If you need something different, we can mold this combination of plugs on 18/3 SVT or SJT.



LIGHTING CORDSLocking Plugs Stay In Ceiling Receptacles

Many lighting applications require a locking plug.  We assemble all NEMA locking configurations.  The L5-15P and L7-15P plugs are in stock and can be attached to the length and type of cord you specify.



EUROPEAN POWER SUPPLY CORDS

In Europe and abroad, each country has their own plug type and approval agencies.  Call us to discuss the type of plug you need.  These cords can be configured with leads on the free end, or the 'business machine' plug pictured above.



U.L.  AND C.S.A.

Our power supply cords are Underwriters Laboratories approved.  They will be shipped with the appropriate U.L. label attached to the smallest shipping container.  Canadian Standards Association approval is shown either by the C.S.A. monogram or the new cUL label.
